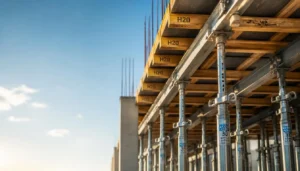

Setting up your horizontal staging is a highly precise step in concrete deck formwork installation. While vertical shoring pipes bear the downward weight to the ground, your horizontal elements form the immediate structural bridge underneath the ceiling shutters. Securing a reliable Acrow span rental Bangalore fleet provides your site team with rigid, telescoping steel beams built to span across distant props. These primary beams support the heavy centering sheets, preventing them from buckling or sagging under a live concrete pour.
[Wet Concrete Mix] ──> [Centering Sheets / Plywood] ──> [Horizontal Acrow Spans & H20 Beams] ──> [Vertical Props]
When concrete is dropped from a pump line, it creates an intense dynamic horizontal ledger load that spreads across the nearest supports. If your horizontal beams do not match this weight path, the slab centering sheet support system will flex. This minor structural shifting bends the under-face of your slab, resulting in an uneven ceiling line that requires expensive concrete grinding work to fix later. By linking adjustable steel spans with high-quality engineered timber H-beams, you create a rigid horizontal runway that stays perfectly flat.
To see how these horizontal bridging components link up with your main vertical layout plans, check out our master overview of Slab Formwork Scaffolding Rental Bangalore Systems.
Understanding the Mechanics of Adjustable Steel Spans
To safely manage your support grid layout, your site engineers must evaluate how telescoping design features alter the maximum load capacity of adjustable steel spans. A standard Acrow span is built using a two-piece structural framework: a wide outer member sleeve and a slightly smaller inner sliding channel that extends outwards to match your required clear span length.
While this telescoping format offers excellent flexibility for variable room sizes across Bangalore job sites, it changes the physical rules of structural loading. The further the inner sliding channel is pulled out from the outer sleeve, the lower the safe weight capacity becomes at the center point. Extending a steel span to its maximum length increases the risk of bending moment deflection limits being breached under a heavy concrete pour.
For example, a standard 2.4-meter span might support up to 2000 kg of concrete load when fully closed. However, if you pull that same span out to its maximum 4.0-meter extension without placing an intermediate vertical prop underneath the joint, its safe load capacity drops by more than half.
The Spacing Blueprint: How to Calculate Acrow Span and Beam Intervals
Calculating the exact gap between horizontal supports is a vital math step for your site engineers. When figuring out how to calculate spacing for Acrow spans in slab casting, you must map out your horizontal grid based on the thickness of the concrete floor. If you place your horizontal spans too far apart, the centering material will bow under the heavy downward pressure, leading to structural errors.
[150mm Thick Slab] ──> Wider Span Gaps Allowed (Up to 1.2 Meters)
[300mm Thick Slab] ──> Tight Span Gaps Required (Max 0.75 Meters)
The primary load calculation requires tracking the weight of the wet concrete mix combined with the adjusting steel span weight loads. To keep your support grid lines perfectly rigid, use this structural span layout table based on standard 1200mm wide centering steel sheets:
| Slab Thickness (mm) | Approximate Wet Weight (kg/m2) | Maximum Acrow Span Gap (m) | Required Vertical Prop Support Gaps (m) |
| 150 mm | ~480 | 1.2 m | 1.2 m |
| 200 mm | ~620 | 1.0 m | 1.0 m |
| 250 mm | ~760 | 0.9 m | 0.9 m |
| 300 mm | ~900 | 0.75 m | 0.75 m |
When laying out your primary support grid lines, always measure from the center point of each steel span. Tightening these intervals to match your specific slab thickness guarantees a clean horizontal structural layout, keeping the temporary platform rigid during high-volume concrete drops.
Timber H20 Beam Layout Spacing Matrix for Plywood Shuttering
When your project swaps out metal sheets for premium plywood boards, your setup math must adjust to account for a different type of cross-sectional stiffness. Enforcing a proper H20 timber beam layout spacing matrix is crucial to prevent thin 12mm or 18mm plywood boards from sagging between your primary steel spans.
Timber Spacing Rule: The standard H20 timber beam layout spacing matrix requires primary beams to be spaced a maximum of 1.2 meters apart, while secondary wooden runners supporting 12mm to 18mm plywood shuttering sheets must maintain a strict gap between 300mm and 400mm depending on concrete depth.
[Plywood Shutter Sheet]
───────────────────────
▲ ▲ ▲ ▲ ▲ ▲ ▲ <── [Secondary H20 Runners: Spaced 300mm to 400mm]
═══════════════════════ <── [Primary Steel Spans: Spaced 1.2 Meters Apart]
When setting up your soffit plywood framing, lay your primary H20 timber beams across your vertical support jacks first. Next, place your secondary wooden runners on top, running them in the opposite direction at tight, even intervals. This cross-grid layout ensures that the under-slab plywood stays flat and secure under heavy loads, giving your cured concrete a smooth, professional finish.
Common Errors: Deflection Limits and Loose Lock Pins
Even with precise spacing math, a horizontal staging layout can fail if field crews overlook small component errors during assembly. When managing a slab centering sheet support system, the most critical risk is exceeding bending deflection limits. If a horizontal span or timber runner flexes just a few millimeters too much under the weight of a live concrete drop, it causes structural shifting across the entire interlocking framework, leading to uneven surfaces.
A frequent cause of formwork failure on busy construction sites is using unrated or damaged locking hardware. Every telescoping steel span relies on a heavy-duty high-tensile lock pin to secure the inner sliding channel to the outer member sleeve. On many unmanaged sites, workers mistakenly use makeshift scrap rebar pieces or thin wire coils as replacement pins when the original components go missing. Scrap steel lacks the shear strength required to carry high structural loads; it can warp and snap under pressure, dropping the deck level instantly.
To maintain reliable safety factors across your horizontal grid setup, your site supervisors must enforce three strict layout field rules:
- Reject Worn Components: Ban any steel spans showing visible metal rust, deep dents, or twisted edge channels. Damaged steel cannot distribute weight loads evenly.
- Enforce Complete Pin Locking: Verify that every single telescoping span uses a certified, factory-grade locking pin with a secondary retaining clip to prevent it from vibrating loose during the pour.
- Monitor Mid-Span Deflection: Check the center joints of long-span assemblies during the concrete pour. If any horizontal beam shows visible downward bowing, stop the pour immediately and place an extra vertical support prop underneath to lock it back into place.
FAQs: Managing Horizontal Staging Hardware
What is the difference between a standard sheet span and a heavy-duty beam?
The major difference lies in their targeted load capacities and structural application. A standard telescopic steel span, often rented from centering material suppliers in Bengaluru, is designed primarily to support lightweight thin metal centering sheets. In contrast, heavy-duty lattice girders or engineered wooden H-beams are built with much higher cross-sectional stiffness. These heavy-duty components are required when pouring thicker, high-tonnage concrete slabs (like industrial floors or heavy commercial transfer beams) where a standard telescopic span would exceed safe deflection limits even when fully closed.
Can I use Acrow spans without vertical U-head jack supports?
No. Trying to rest round telescoping steel spans directly on top of a raw vertical scaffolding standard is extremely dangerous on a construction site. Vertical U-head jacks provide the wide, stable, four-way channel that receives and cradles the round cross-sectional profile of the horizontal span. These forkheads lock the primary horizontal beam in place, preventing it from rolling laterally or shifting sideways when a concrete drop puts dynamic, uneven pressure across the temporary deck layout during casting.
Action Steps: Your On-Site Horizontal Layout Checklist
To convert these structural spacing calculations into an efficient layout roadmap, your site supervisor must run a full horizontal grid verification before starting a pour. Catching a crooked beam or a loose locking pin is easy during dry assembly, but impossible once the concrete pump line starts running.
Follow this 5-step checklist 24 hours prior to starting your pour:
- Check the Lock Pins: Walk the entire horizontal deck support layout. Verify that every Acrow span rental Bangalore unit is secured with a factory-grade, high-tensile locking pin. Remove any makeshift wire or scrap rebar immediately.
- Measure Span Gaps: Use a standard tape measure to verify your support grid line spacing. Ensure that the gaps between your horizontal spans match your calculated slab thickness matrix (for example, a strict 1.0-meter gap for a standard 200mm slab).
- Confirm Forkhead Alignment: Check that all primary horizontal beams are centered flat inside the top vertical U-head jack channels. The beams must sit flush against the steel base of the forkhead without any gaps or tilting.
- Check Wood Runner Spacing: For plywood shutter layouts, check that the secondary wood runners follow your specific H20 timber beam layout spacing matrix. Keep gaps between 300mm and 400mm to stop under-slab plywood sheets from bending.
- Verify End Bearing Length: Ensure that the outer ends of every steel span extend at least 150mm over the main vertical support walls or ledger channels. A short bearing length allows beams to slip off their supports if the framework shifts slightly.
Running through these quick checks systematically prevents platform deflection and guarantees a clean, professional finish on your ceiling slab. For large commercial projects that require high-quality materials and expert design advice, working with an experienced team like Sri Kanakadri Scaffolding ensures your horizontal layout is backed by certified materials and on-time job site delivery.
Key Takeaway: A flat ceiling is the direct result of a perfectly square horizontal support grid. Taking two hours to double-check your spacing gaps and locking pins before a concrete pour eliminates expensive floor repairs later.
